Camere di prova di livello e di bassa temperatura di precisione del laboratorio

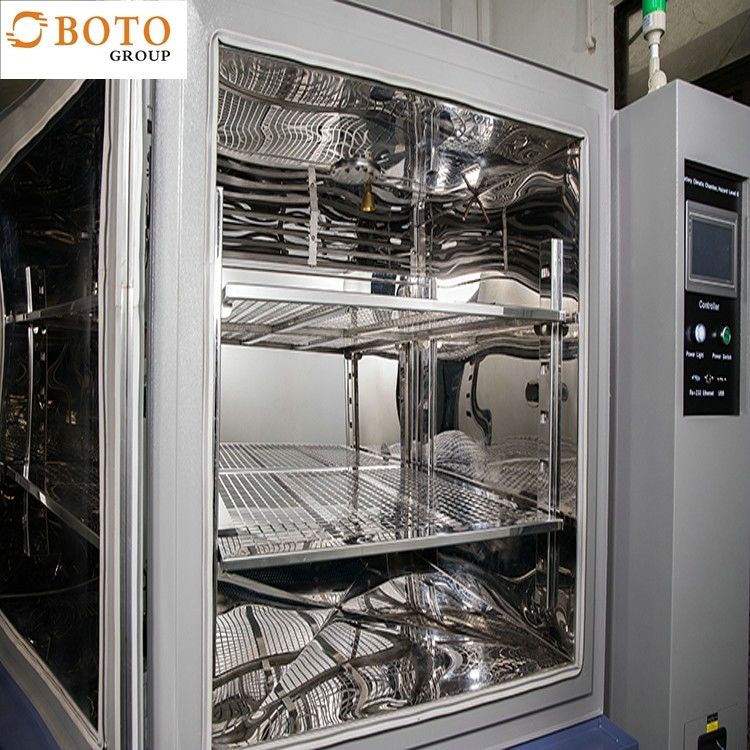

Laboratory Precision High And Low Temperature Test Chambers
Laboratory Precision High And Low Temperature Test Chambers Laboratory Precision High And Low Temperature Test Chambers Laboratory Precision High And Low Temperature Test Chambers Laboratory Precision High And Low Temperature Test Chambers Laboratory Precision High And Low Temperature Test Chambers
Informazioni di base
Luogo di origine: La Cina
Marca: BOTO
Certificazione: CE ISO
Numero di modello: BT-GTO-080
Quantità di ordine minimo: 1set
Prezzo: 2500 USD
Imballaggi particolari: caso di legno
Tempi di consegna: 5-25 giorni
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 100 insieme/insiemi al mese
Contattaci
Tasso di raffreddamento:: ≥1°C/min Input:: PT100 o sensore di T
Sistema di circolazione di aria:: Ventola di raffreddamento Dimensione esteriore della camera (millimetro) W*H*D:: 900*900*1500
Potere:: Elettronico Tasso di riscaldamento:: ≥3°C/min
Controllo:: Controllo di PID Condensazione:: Aria (acqua) - condensatore di raffreddamento
Fan:: Fan dello scirocco Dimensione interna della camera (millimetro) W*H*D:: 400*500*400
Evidenziare:

Camere di prova di bassa temperatura PT100

,

Camere di prova di bassa temperatura di controllo di PID

,

Camere di prova di bassa temperatura RS232

Laboratory Precision High And Low Temperature Test Chambers



Product Description







Temperature only test chamber

High low temperature test chamber Temperature Only Test Chambers


Temperature chamber models designed to save lab space The Temperature chamber series provides an economical and space-saving solution for a variety of temperature testing requirements. Lowest temperature: -20 or -80°C (-4 or -112°F) Highest temperature: 500°C (932°F) The extended temperature ranges of the Standard series make testing at extreme conditions possible without buying a larger, stand-alone chamber. Two chamber sizes are available, as well. The programmer includes a temperature alarm as just one part of Grande's three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.



Features

High performance and quiet operation (65 dBa)

Space-saving footprint, designed for flush installation to wall

Stainless steel exterior
Full thermal break around doorframe
One 50mm (2") or 100mm (4") diameter cable port on left, with flexible silicone plug
Three levels of overheat protection, plus overcool protection
Easy lift-off service panels, electrical access on left
Detachable eight-foot power cord with plug
ETL listed electrical panel conforming to UL 508A
Touch-screen programmer/controller with Ethernet
Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)
One event relay for external device control, plus specimen power interlock relay for safety
Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-232 ports available, as well.

Corresponding Standard of the Temperature and Humidity Test Chamber:
1. GB11158 high-temperature testing condition
2. GB10589-89 low-temperature testing condition
3. GB10592-89 high-low-temperature testing condition
4. GB/T10586-89 humidity testing condition
5. GB/T2423.1-2001 low-temperature testing condition
6. GB/T2423.2-2001 high-temperature testing condition
7. GB/T2423.3-93 humidity testing condition
8. GB/T2423.4-93 alternating temperature testing machine
9. GB/T2423.22-2001 temperature testing method
10. IEC60068-2-1.1990 low-temperature testing method
11. IEC60068-2-2.1974 high-temperature testing method
12. GJB150.3 high-temperature test
13. GJB150.4 low-temperture test
14. GJB150.9 humidity test
Specification
Model No
BT-GTO-080
BT-GTO-150
BT-GTO-225
BT-GTO-408
BT-GTO-800
BT-GTO-1000
Working room(L)
80
150
225
408
800
1000
Inner chamber size(mm)W*H*D
400*
500*
400
500*
600*
500
500*
750*
600
600*
850*
800
1000*
1000*
800
1000*
1000*
1000
Exterior chamber size(mm)W*H*D
900*
900*
1500
950*
1500*
1050
950*
1650*
1150
1050*
1750*
1350
1450*
1900*
1350
1450*
1900*
1550
Packaging volume(CBM)
2
3
3.5
4.5
5.5
6
G.W.(KGs)
300
320
350
400
600
700
Performance
Heating & Cooling Rate
1°C/min,3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min,20°C/min,25°C/min,
30°C/min linear average or nonlinear average
Temperature range
-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃,-20℃,0℃~+150℃,200℃,
250℃,300℃,400℃,500℃
Temp.fluctuation
±0.5°C
Temp.Uniformity
±1.5°C,No-load operation,After stead state 30 min.
Temp.resolution
0.01°C
Heating rate
≥3°C/min
Cooling rate
≥1°C/min
Power
Electronic
Material
Insulation Material
PU & Fiberglass wool
Inner chamber material
SUS#304 stainless steel plate
Exterior chamber material
Stainless steel plate+ powder coated
Heating System
SUS#304 stainless steel high-speed heater








System
Air circulation system
Cooling fan
Fan
Sirocco fan
Heating System
SUS#304 stainless steel high-speed heater
Air flow
Forced Air Circulation(It enters at bottom and leaves at top)
Refrigeration system
Imported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
Refrigerating fluid
R23/ R404A USA Honeywell.
Condensation
Air(Water)-cooling condenser
Controlling system
Digital electronic indicators+S.S.R.With PID automatic calculation capability
Operation interface
Grande Expertise in Temperature & Humidity Controller,Chinese-English Shift.









Controller
Programmable capability
Save 120 profiles with up to 1200 steps each
Setting range
Temperature:-100℃+300℃
Reading accuracy
Temperature:0.01℃
Control
PID control
Input
PT100 or T Sensor
Communication interface
Equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal
computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232,
RS-485, GP-IB, Ethernet
Print function
Japan Yokogawa Temperature Recorder(Optional accessories)
Auxiliary
Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)
Accessories
Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading
shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
Safety protection device
Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload
protection,Overload indicator lamp.
Power supply
AC 1Ψ 110V;AC 1Ψ 220V;3Ψ220V;3Ψ380V,60/50Hz
Customized service
Welcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
